The Dormakaba - DKPS-2A

The Dormakaba DKPS-2A Power Supply/Charger is designed for safety, reliability, and flexibility in access control environments. Converting 120–240 VAC (50/60Hz) into a continuous 2 Amp supply at 12VDC or 24VDC (switch selectable), it ensures stable performance for a variety of devices.

Equipped with a power distribution controller board, the DKPS-2A features 4 individually protected outputs with electronic over-current protection. Integrated supervisory relays (AC fail, battery fail, DC fail, and status) allow remote monitoring and integration with fire panels or access control systems for enhanced security.

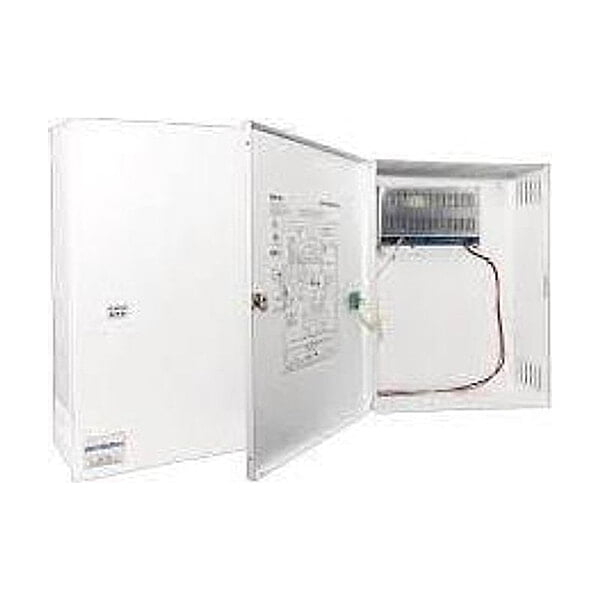

The metal housing accommodates up to two 12VDC–7Ah or 12Ah batteries, providing backup power during AC outages. With LED indicators, optional tamper switches, and UL294 6th Edition certification, the DKPS-2A is built for dependable performance in commercial security applications.

Key Features & Benefits

• ⚡ Selectable Output: Provides 12VDC or 24VDC at 2A continuous supply

• 🔒 Robust Applications: Supports maglocks, electric strikes, MLR devices, egress doors, and more

• 🛡 Built-in Safety: 4 outputs with electronic over-current protection

• 📡 Remote Monitoring: Supervisory relays for AC fail, battery fail, DC fail, and system status

• 🔋 Battery Backup: Supports up to 2x 12V, 7Ah or 12Ah batteries with automatic switchover

• 🚨 Fire Panel Integration: Automatic unlocking of specified doors during alarms

• 💡 Status LEDs: Green (AC power), Blue (DC power), Yellow (battery/fault)

• 🛠 Optional Tamper Protection: Single or dual tamper switch options available

• ✅ Certified & Compliant: UL294 6th Edition, CE, FCC, and ULC standards
